X86 Server

Multi-node, high density blade server with shared power, cooling, networking and management infrastructure to support extraordinary simplicity, flexibility and upgradeability.Delivering the high performance and reliability fMulti-node, high density blade server with shared power, cooling, networking and management infrastructure to support extraordinary simplicity, flexibility and upgradeability.Delivering the high performance and reliability for high-end carrier or enterprise applications.or high-end carrier or enterprise applications.

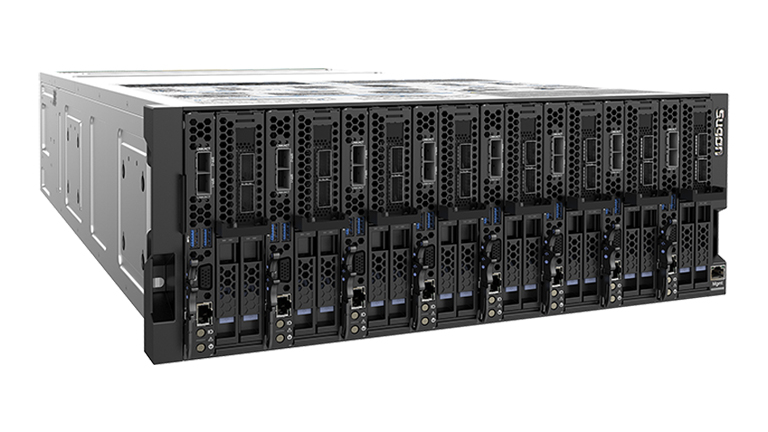

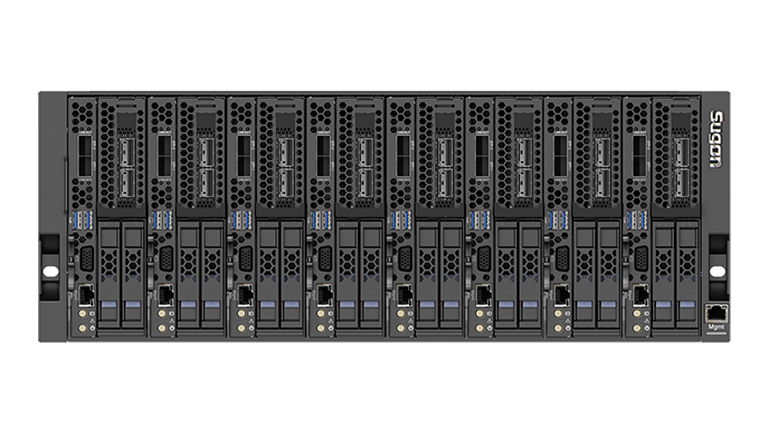

TC4600E G3

Synopsis:

Sugon launched TC4600E blade server, targeting at high performance computing, Web infrastructure and virtualization, which is an industry leading and the latest new generation in conformity with opening standard blade server product.

Data Download

Extremely high computing power density

8 * Two-Socket compute nodes Support max. 448 physical computing cores
Powerful high speed network capacity

Support 100Gb InfiniBand, Omni-Path and other high speed network technologies Support Multi-Host 100Gb high speed network
Flexible expansion and configuration

Support Max. 16 standard PCIe expansion slots

TC4600E G3 Chassis System Technical Specifications

CX50-G30

Blade chassis physical appearance characteristics	4U standard chassis height
Computing blade	Max. 8 computing blades Provide Two-Socket computing blade based on Intel? Xeon? Scalable processor for option
High speed network	Support EDR 100G InfiniBand network Support Intel 100G Omni-Path network Support Multi-Host 100G InfiniBand network
GbE Switched network	Support gigabit switched module Externally provide 4 * RJ45 1G ports and 2 * SFP+ 10G ports
PCIe expansion slot	8 * PCIe x16 HH HL standard slots (front) 8 * PCIe x8 HH HL standard slots (rear)
Power module	Configure Max. 4 hot-plug redundancy AC power modules with load balancing and fault switching functions. Provide N+1 or N+N power redundancy configuration
Heat dissipation module	Configure 5 intelligent redundancy fans with linear pre-compensation function
Management module	It can realize remote virtual media, remote KVM, blade status, fault locating, startup and shutdown and other comprehensive management and control functions, and provide one front dedicated blade management interface.
Supporting media	Optional 1* external USB DVD-RW; 1 * USB Hub
Dimensions	175.0mm(H)×448.0mm(W)×898.0mm(L)
Weight	Max. 35kg (excluding computing blade)
Track for Rackmount specification	601mm~923mm, 2U, maximum load bearing 135 kg
Working Temperature	Operating temperature: 5℃～40℃ (41℉～104℉) Storage temperature: -40℃～65℃ (-40℉～149℉)
Working humidity	Working maximum relative humidity: 80％RH (40℃) Transportation storage maximum relative humidity: 93％ RH (65℃)

Processor	Support Intel? Xeon? Scalable processor, high speed UPI interconnected bus (10.4/9.6 GT/s)，support Max. 3.6GHz dominant frequency, support Max. 28 cores
Processor Qty.	Max. 2, Optional 1
Chipset	Intel Lewisburg C620 series chipset
Memory	16 * memory slots, support DDR4 2666/2400 ECC memory Support RDIMM, LRDIMM and NVDIMM-N
Storage controller	Support Onboard SATA3.0 controller Optional extension 12Gb/s SAS/RAID controller, provide RAID 0,，RAID 1
Hard drive	Support 2 * local 2.5” HDD Bays Support hot-plug SATA/SAS HDD/SSD or NVMe SSD Support 1* Onboard M.2 SSD and 1* Onboard SATA DOM
High speed network	Support EDR 100G InfiniBand network Support Intel 100G Omni-Path network Support Multi-Host 100G InfiniBand network
Gigabit network	Onboard Intel double port GbE controller, fully support virtualization and IO acceleration
PCIe expansion slot	Support one PCIe x16 HH HL standard slot (front) Also support one PCIe x8 HH HL standard slot (rear)
Other ports	1 * front RJ-45 gigabit network interface 2 * front USB 3.0 interfaces, 1* Onboard USB 3.0 interface 1 * front VGA interface 1 * Onboard Micro SD card slot
Management function	Integrated BMC chip, in conformity with IPMI2.0 standard management function, supporting SOL, KVM Over IP, virtual media and other advanced management functions.
GPU	Integrated display controller, 16MB video memory, maximum resolution 1920x1080
Support OS	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 RHEL 6.x/7.x 64bit SLES 12 SPx 64bit Ubuntu 15.10 64bit VMware ESXi 6.0 *Please refer to product compatibility list for OS support. Prior notice will not be made for any changes.
Dimensions	54.0mm(W)×167.2mm(H)×689.5mm(L)
Weight	Max. 6 kg
Working temperature	Operating temperature: 5℃～40℃(41℉～104℉) Storage temperature: -40℃～65℃(-40℉～149℉)
Working humidity	Working maximum relative humidity: 80％ RH (40℃) Transportation storage maximum relative humidity: 93％ RH (65℃)
